Secomak Model 535/9 Gas Booster
Raises gas supply pressure for boilers, burners, CHP engines, ovens, and furnaces. Up to 500 m³/hr at 68 mbar on a 2.2 kW three phase motor.
At a glance: The Secomak Model 535/9 is a gas booster that raises supply pressure for boilers, burners, CHP engines, ovens, and furnaces. It delivers up to 500 m³/hr and up to 68 mbar on natural gas, town gas, or biogas, using a 2.2 kW 415 V three phase motor. It is available stand-alone or as a package with APS Inverter, Duty Standby, acoustic enclosure, and Gas Sensor System options. Hurll Nu-Way supplies, installs, and services Secomak gas boosters in Australia.
Boosted gas pressure where the supply falls short
A gas booster lifts the pressure of the incoming gas supply so burners, boilers, and CHP engines get the pressure they are designed for. The Secomak 535/9 handles up to 500 m³/hr and up to 68 mbar.
It runs on natural gas, town gas, or biogas. The impeller is machined from a single piece of aluminium for smooth, balanced running, the bearings are sealed for life to keep out dust and dirt, and the fan chamber is ribbed for extra strength. It can link to a building management system.
The 535/9 comes as a stand-alone booster or as a package with controls and an installation kit, with APS Inverter, Duty Standby, acoustic enclosure, and Gas Sensor System options. Secomak is a British manufacturer that, working with British Gas, built the first gas booster in 1966. Each booster is built and tested in the UK to British Standard 8487.
Key advantages
- Natural gas, town gas, or biogas
- Impeller machined from solid aluminium
- Sealed for life bearings keep out dust and dirt
- Ribbed fan chamber for extra strength
- Works with building management systems
- Built and tested in the UK to BS 8487
Secomak 535/9 specifications
- Maximum volume 500 m³/hr
- Maximum pressure 68 mbar
- Motor 2.2 kW
- Power supply 415 V, three phase, 50 Hz
- Start current 10 A
- Run current 4 A
- Noise level 82 dB(A) (10 to 15 dB(A) lower with acoustic enclosure)
- Weight 40 kg
- Inlet flange DN80
- Outlet flange DN50
- Gases Natural gas, town gas, biogas
Available packages
| Option | What it adds |
|---|---|
| Stand-alone booster | The booster set on its own, for fitting into your own controls |
| Package gas booster | Booster with controls, supplied with an installation kit |
| APS Inverter System | Holds a set outlet pressure when inlet pressure dips, with soft start and lower power use |
| Duty Standby | Two boosters that swap duty every seven days, so maintenance never stops the gas supply |
| Acoustic enclosure | Cuts operating noise by 10 to 15 dB(A), with quick release panels |
| Gas Sensor System | Gas leak sensor inside the acoustic enclosure, with pre-alarms and automatic safety cut-off |
Packages and options are confirmed per job. Ask our engineers which setup suits your site.
Secomak 535/9 datasheet
The current Secomak 535/9 datasheet, with the performance curve and package options.
Secomak Model 535/9 1 datasheet
Spare parts and service
Gas booster spare parts
Flexible hose connectors made to fit Secomak boosters, plus other parts on request.
- Flexible hose connector 2" (Secomak fit)
- Flexible hose connector 3" (Secomak fit)
- Flexible hose connector 4" (Secomak fit)
Installation, commissioning, and servicing
Our technicians install, commission, and service gas boosters, so your Secomak 535/9 keeps the gas supply steady.
Book a site serviceSecomak 535/9 FAQs
What flow and pressure does the Secomak 535/9 give?

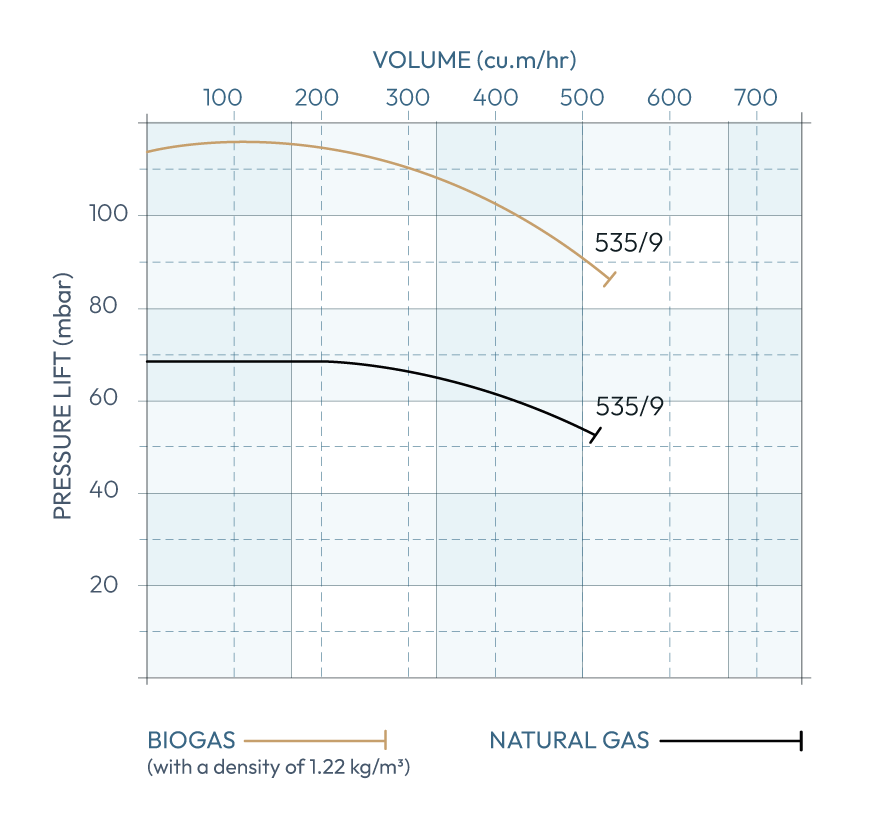

Up to 500 m³/hr and up to 68 mbar. The datasheet's performance curve shows the pressure available at each flow rate.
What gases can the Secomak 535/9 boost?
Natural gas, town gas, and biogas.
What power supply does the 535/9 need?
A 415 V three phase, 50 Hz supply. The motor is 2.2 kW, with a start current of 10 A and a run current of 4 A.
What packages are available for the 535/9?
It comes stand-alone or as a package gas booster with controls and an installation kit. Options include the APS Inverter System, Duty Standby, an acoustic enclosure, and the Gas Sensor System.
How loud is the Secomak 535/9?
82 dB(A) as standard. An acoustic enclosure cuts that by 10 to 15 dB(A).
Who supplies Secomak gas boosters in Australia?
Hurll Nu-Way, based in Glen Waverley, Victoria, supplies, installs, commissions, and services Secomak gas boosters. Call 1300 556 380.
Page last updated October 2026.
Not sure which gas booster you need?
Tell us the gas, the flow, and the inlet and outlet pressure you need, and our engineers will size a booster for you.
