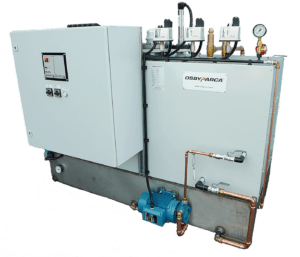

Osby Parca H-120-E Electric Steam Boiler
Fully automatic electric steam boilers from 48 to 120 kW, for small steam loads that need steam fast. Supplied with feed water tank, blowdown tank, and controls.
At a glance: The Osby Parca H-120-E is a fully automatic electric steam boiler from 48 to 120 kW, giving 62 to 156 kg/h of steam at up to 7 bar. It heats with acid-resistant stainless steel elements and sits on a combined feed water and blowdown tank, so it suits small steam loads with no gas supply. Hurll Nu-Way supplies, commissions, and services Osby Parca boilers in Australia.
Compact electric steam, fully automatic
The H-120-E heats water with acid-resistant stainless steel pipe elements, which keeps servicing and maintenance to a minimum. A pressure sensor holds the operating pressure steady, and output is switched in stages.
The steam boiler sits on top of a combined stainless steel feed water and blowdown tank. Level electrodes control the feed water and switch the heating off if the water level goes too low or too high, and a solenoid valve keeps the feed water tank topped up.
All electrical equipment is wired into a cabinet on the boiler's long side, so installation is mainly connecting power, water, steam, and drains. Osby Parca has built boilers in Osby, Sweden, since 1935.
Key advantages
- No gas supply or flue needed
- Acid-resistant stainless heating elements
- Fully automatic level and pressure control
- Feed water and blowdown tank included
- Quick steam response
- Approx. 95% efficiency
Osby Parca H-120-E specifications
- Output 48 to 120 kW
- Steam output 62 to 156 kg/h
- Operating pressure Up to 7 bar
- Supply 3-phase 415 V, 50 Hz
- Dimensions 1,900 x 1,100 x 1,300 mm (L x W x H)
- Weight 450 kg
- Efficiency Approx. 95%
Models and variants
| Model | Output (kW) | Steam (kg/h) | Power stages | Current (A) |
|---|---|---|---|---|
| H-120-E 48 | 48 | 62 | 2 | 70 |
| H-120-E 72 | 72 | 94 | 3 | 105 |
| H-120-E 96 | 96 | 125 | 4 | 140 |
| H-120-E 120 | 120 | 156 | 5 | 174 |
From the Osby Parca H-120-E installation and operation instructions (2018). All four sizes share the same frame.
Osby Parca H-120-E datasheets and manuals
Osby Parca's H-120-E installation and operation manual, with technical data, drawings, and wiring diagrams.
H-120-E 1 document
Spare parts and service
Boiler spare parts
Spare parts for the Osby Parca H-120-E, sourced through Osby Parca. Send us the boiler serial number for part numbers and lead times.
Ask about spare partsCommissioning and boiler service
Our technicians commission new boilers and service existing ones, including burners, controls, and water treatment checks.
Book a boiler serviceOsby Parca H-120-E FAQs
What output does the H-120-E cover?
Four sizes: 48, 72, 96, and 120 kW, giving 62 to 156 kg/h of steam at up to 7 bar.
What power supply does it need?
A 3-phase 415 V, 50 Hz supply. Current draw runs from 70 A for the 48 kW model to 174 A for the 120 kW model.
Is water treatment needed?
Yes. Use softened water, kept between pH 8.8 and 10.5, to limit scale and corrosion.
How much space does it need?
The boiler is 1,900 x 1,100 x 1,300 mm and weighs 450 kg. Leave at least 1.2 m clear in front of the electrical cabinet.
What approvals does a boiler need in Australia?
Many boilers are registrable plant under work health and safety law, which can mean design registration and plant registration with your state regulator, depending on the boiler's hazard level. Talk to us early and we will work through what your site needs. Call 1300 556 380.
Who supplies and services Osby Parca boilers in Australia?
Hurll Nu-Way, based in Glen Waverley, Victoria, supplies Osby Parca boilers and provides installation support, commissioning, servicing, and spare parts sourced through the manufacturer. Call 1300 556 380.
Page last updated October 2026.
Need a boiler sized for your site?
Tell us the heat or steam load, the energy you have on site, and the space, and our engineers will recommend the right boiler.
