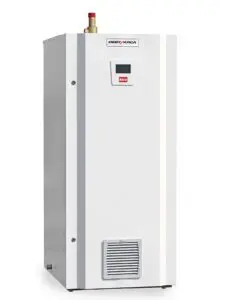

Osby Parca EL 500 Eco II Electric Boiler
Large electric boilers from 204 to 504 kW in six sizes, with staged output, touch screen control, and Modbus. For big buildings, district heating, and heat pump backup.
At a glance: The Osby Parca EL 500 Eco II is a large electric boiler in six sizes from 204 to 504 kW, with a 6 bar design pressure and staged output that can be limited. It has touch screen control, Modbus, tariff control, and is approved to run with no water flow, with a built-in safety version available. Hurll Nu-Way supplies, commissions, and services Osby Parca boilers in Australia.
High-output electric heat with smart controls
The EL 500 Eco II covers 204 to 504 kW in six sizes. Output switches on in stages, which can be limited, or set as a percentage that the control turns into stages. Current transformers can protect the site's main fuse, and boilers can run in parallel for more output.
Water temperature follows a set point or an external signal, for example from a heat pump or an outdoor sensor. The touch screen shows output and temperature, logs alarms with help text, and backs up to USB. All parameters are available over Modbus, and alarms can go to a building management system (BMS) or a relay. The boiler is also ready for tariff control.
After a power cut of more than three minutes, output is delayed by an hour before it switches back on. The boiler is approved to run with no water flow, and the S version has built-in safety equipment. Osby Parca has built boilers in Osby, Sweden, since 1935.
Key advantages
- Six sizes, 204 to 504 kW
- Staged or percentage power limiting
- Modbus and BMS alarm outputs
- Tariff control ready
- Approved for zero flow
- Built-in safety version (S) available
Osby Parca EL 500 Eco II specifications
- Output 204 to 504 kW
- Supply 3-phase 415 V, plus separate 230 V control supply
- Design pressure 6 bar
- Max. operating temperature 100°C
- Water volume 372 litres
- Connections 100 mm flow and return (welded)
- Communication Modbus, BMS or relay alarm output
Models and variants
| Model | Output (kW) | Rated current (A) |
|---|---|---|
| EL 500 Eco II 204 | 204 | 310 |
| EL 500 Eco II 252 | 252 | 382 |
| EL 500 Eco II 315 | 315 | 477 |
| EL 500 Eco II 378 | 378 | 573 |
| EL 500 Eco II 441 | 441 | 668 |
| EL 500 Eco II 504 | 504 | 763 |
From Osby Parca's EL 500 Eco data sheet (November 2022). Each size comes as standard or S (with built-in safety equipment).
Osby Parca EL 500 Eco II datasheets and manuals
Datasheets and manuals for the Osby Parca EL 500 Eco II are available on request. Ask our engineers or call 1300 556 380.
Spare parts and service
Boiler spare parts
Spare parts for the Osby Parca EL 500 Eco II, sourced through Osby Parca. Send us the boiler serial number for part numbers and lead times.
Ask about spare partsCommissioning and boiler service
Our technicians commission new boilers and service existing ones, including burners, controls, and water treatment checks.
Book a boiler serviceOsby Parca EL 500 Eco II FAQs
What sizes does the EL 500 Eco II come in?
Six sizes on a 415 V supply: 204, 252, 315, 378, 441, and 504 kW.
How much current does it draw?
From 310 A for the 204 kW model to 763 A for the 504 kW model, on 3-phase 415 V. Current transformers can be fitted to protect the main fuse.
Can it follow a heat pump?
Yes. Water temperature can follow a set point or an external signal from a heat pump or outdoor sensor.
Can several boilers run together?
Yes. Several EL 500 Eco II boilers can be connected in parallel for a higher total output.
Where can I get the data sheet and manual?
Call 1300 556 380 or request a quote and we will send the current Osby Parca data sheet and manual.
Who supplies and services Osby Parca boilers in Australia?
Hurll Nu-Way, based in Glen Waverley, Victoria, supplies Osby Parca boilers and provides installation support, commissioning, servicing, and spare parts sourced through the manufacturer. Call 1300 556 380.
Page last updated October 2026.
