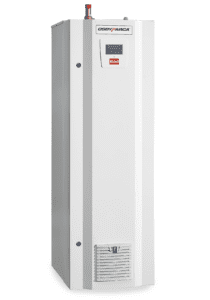

Osby Parca EL 160 Eco II Electric Boiler
Electric boilers from 72 to 156 kW, with touch screen control, Modbus, and DN80 water connections for easy pairing with a heat pump.
At a glance: The Osby Parca EL 160 Eco II is an electric boiler in five sizes from 72 to 156 kW, switching in 9 kW steps at a 6 bar design pressure. It has touch screen control, Modbus, DN80 connections for heat pumps, and is approved to run with no water flow, with a built-in safety version available. Hurll Nu-Way supplies, commissions, and services Osby Parca boilers in Australia.
Mid-size electric heat, built to work with heat pumps
The EL 160 Eco II comes in five sizes from 72 to 156 kW. Output switches on in 9 kW steps, and the number of steps can be limited to cap the load. Current transformers can protect the site's main fuse, and several boilers can run in parallel for more output.
The touch screen shows output as well as temperature, logs operation and alarms with help text, and backs up settings to USB. Every parameter is available over Modbus through the built-in internet module, and alarms can go to a building management system (BMS) or a relay. DN80 flow and return connections make it simple to pair with a heat pump.
After a power cut of more than three minutes, the boiler waits an hour before switching its output back on, to protect the network. It is approved to run with no water flow, and the S version has built-in safety equipment, which must be chosen at order as it cannot be added later. Osby Parca has built boilers in Osby, Sweden, since 1935.
Key advantages
- Five sizes, 72 to 156 kW
- 9 kW steps, limitable
- Modbus and BMS alarm outputs
- DN80 connections for heat pumps
- Approved for zero flow
- Built-in safety version (S) available
Osby Parca EL 160 Eco II specifications
- Output 72 to 156 kW
- Supply 3-phase 415 V, plus separate 230 V control supply
- Design pressure 6 bar
- Max. operating temperature 100°C
- Water volume 110 litres
- Connections DN80 flow and return (welded)
- Communication Modbus, BMS or relay alarm output
Models and variants
| Model | Output (kW) | Rated current (A) |
|---|---|---|
| EL 160 Eco II 72 | 72 | 104 |
| EL 160 Eco II 93 | 93 | 134 |
| EL 160 Eco II 114 | 114 | 164 |
| EL 160 Eco II 135 | 135 | 195 |
| EL 160 Eco II 156 | 156 | 225 |
From Osby Parca's EL 160 Eco II data sheet (March 2023). Output switches in 9 kW steps. Each size comes as standard or S (with built-in safety equipment).
Osby Parca EL 160 Eco II datasheets and manuals
Datasheets and manuals for the Osby Parca EL 160 Eco II are available on request. Ask our engineers or call 1300 556 380.
Spare parts and service
Boiler spare parts
Spare parts for the Osby Parca EL 160 Eco II, sourced through Osby Parca. Send us the boiler serial number for part numbers and lead times.
Ask about spare partsCommissioning and boiler service
Our technicians commission new boilers and service existing ones, including burners, controls, and water treatment checks.
Book a boiler serviceOsby Parca EL 160 Eco II FAQs
What sizes does the EL 160 Eco II come in?
Five sizes on a 415 V supply: 72, 93, 114, 135, and 156 kW. Output switches on in 9 kW steps.
What is the S version?
The S version comes with built-in safety equipment. It has to be chosen when ordering, because it cannot be added to a standard boiler later.
Can it connect to a building management system?
Yes. All parameters are available over Modbus, and alarms can be sent to a BMS or through a relay output.
Can several boilers run together?
Yes. Several EL 160 Eco II boilers can be connected in parallel for a higher total output.
Where can I get the data sheet and manual?
Call 1300 556 380 or request a quote and we will send the current Osby Parca data sheet and manual.
Who supplies and services Osby Parca boilers in Australia?
Hurll Nu-Way, based in Glen Waverley, Victoria, supplies Osby Parca boilers and provides installation support, commissioning, servicing, and spare parts sourced through the manufacturer. Call 1300 556 380.
