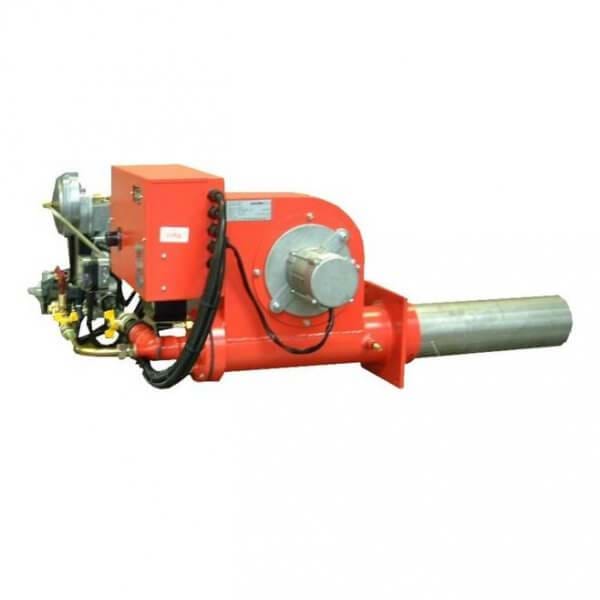

Nu-Way FMP Gas, Oil and Dual Fuel Burner
Packaged industrial process burners with integral fan, valve train, and controls. For ovens, incinerators, furnaces, and other process heat.
At a glance: The Nu-Way FMP is a packaged industrial process burner based on the Multiplex, rated from 147 kW (FMP5) up to 4,400 kW (FMP150). It runs on gas, light oil, or dual fuel, with up to 20:1 turndown on gas and 4:1 on oil, and suits ovens, incinerators, furnaces, and kilns. Hurll Nu-Way supplies, commissions, and services Nu-Way FMP burners in Australia.
The Multiplex burner as a complete package
The FMP packages Nu-Way's proven Multiplex industrial burner with an integral fan and valve train. It is ruggedly built for ovens, incinerators, furnaces, and other process applications.
It runs on all commercial gases, light oil, or dual fuel, and can be built for other gases such as mines gas, biogas, and producer gas. Oil and dual fuel versions start from the FMP15 (440 kW). Control ranges from on/off and high/low to fully modulating.
Combustion tunnels come in stainless steel (to 450°C), heat resistant steel (to 900°C), silicon carbide (to 1,300°C, FMP15 and below), or refractory quarls (to 1,450°C). The FMP uses low or medium velocity tunnels. For high velocity, use the MP burner with a separate fan. Nu-Way is based in Droitwich Spa, England, and is part of the Enertech group alongside Bentone.
Key advantages
- Fully automatic packaged assembly
- Up to 20:1 turndown on gas, 4:1 on oil
- Gas, light oil, or dual fuel
- Metal, silicon carbide, or refractory tunnel options
- Fan and valve train orientation to suit the site
- Optional continuous run fan to prevent overheating
Nu-Way FMP specifications
- Rated output 147 to 4,400 kW (gross CV)
- Fuels All commercial gases, light oil, dual fuel, plus biogas and other gases to order
- Turndown Up to 20:1 gas, 4:1 oil
- Control On/off, high/low, or modulating
- Tunnel temperatures 450°C to 1,450°C depending on material
- Velocity Low or medium
- Motor supply 230 V single phase or 400 V 3-phase
- Rating basis Firing into balanced or suction conditions
Models and variants
| Gas model | Oil model | Rated output (kW) |
|---|---|---|
| FMP5 | Not available | 147 |
| FMP10 | Not available | 293 |
| FMP15 | FMPO 15 | 440 |
| FMP25 | FMPO 25 | 733 |
| FMP40 | FMPO 40 | 1,170 |
| FMP60 | FMPO 60 | 1,750 |
| FMP100 | FMPO 100 | 2,950 |
| FMP150 | FMPO 150 | 4,400 |
Ratings are based on gross CV, firing into a balanced or suction condition.
Nu-Way FMP datasheet
The current Nu-Way FMP datasheet, with ratings, motor details, and dimensions.
FMP 1 datasheet
Spare parts and service
Burner spare parts
Spare parts for the Nu-Way FMP, sourced through the manufacturer. Ask us for part numbers and lead times.
Shop burner sparesCommissioning and burner service
Our technicians handle commissioning and ongoing burner servicing, so your Nu-Way FMP keeps running at its best.
Book a burner serviceNu-Way FMP FAQs
What output does the Nu-Way FMP cover?
Eight sizes rated from 147 kW (FMP5) to 4,400 kW (FMP150), based on gross CV.
Is the FMP available for oil and dual fuel?
Yes, from the FMP15 (440 kW) upwards. The FMP5 and FMP10 are gas only.
What turndown does the FMP give?
Up to 20:1 on gas and 4:1 on oil.
What is the difference between the FMP and the MP?
The FMP is a complete package with its own fan, valve train, and controls, for low and medium velocity firing. The MP is the basic Multiplex burner, used with a separate fan, and covers high velocity applications.
Who supplies and services Nu-Way FMP burners in Australia?
Hurll Nu-Way, based in Glen Waverley, Victoria, supplies Nu-Way FMP burners and provides commissioning, burner servicing, and spare parts. Call 1300 556 380. In New Zealand, contact Nu-Way Energy on 0800 689 296.
