Lanemark TX Tank Heating Burner
High efficiency immersion tube burners for heating process liquids. The burner fires through the tank wall into a small diameter tube heat exchanger.
At a glance: The Lanemark TX is an immersion tube tank heating burner covering 15 to 1,150 kW across seven models, from the TX15 to the TX80. It fires through the tank wall into a small diameter tube heat exchanger, with efficiency of at least 80% on gross CV, and suits metal finishing, industrial washers, and food and drink production. Hurll Nu-Way supplies, commissions, and services Lanemark TX burners in Australia.
Small diameter immersion tube tank heating

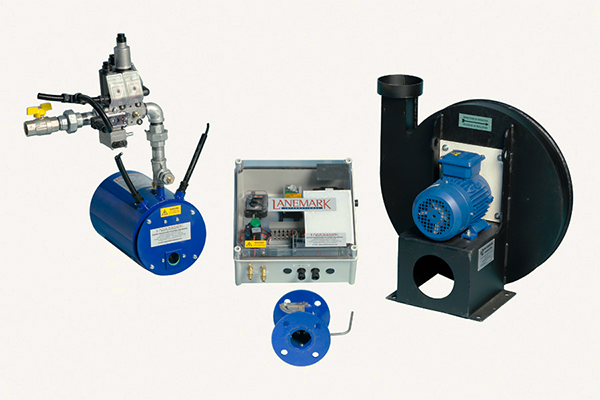

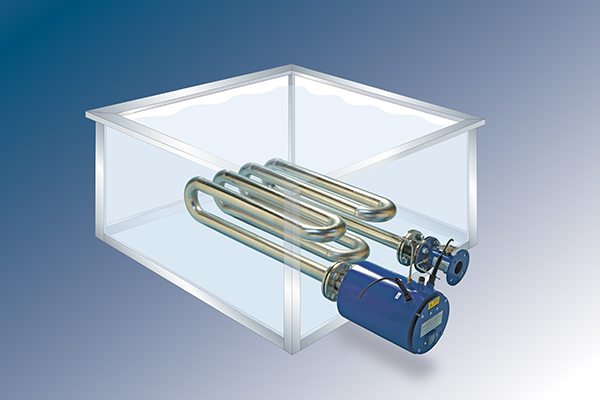

Each TX system has a burner mounted outside the tank, firing through the tank wall into an immersed tube heat exchanger. An exhaust fan on the heat exchanger outlet draws combustion air through the tubes, giving even heat distribution.

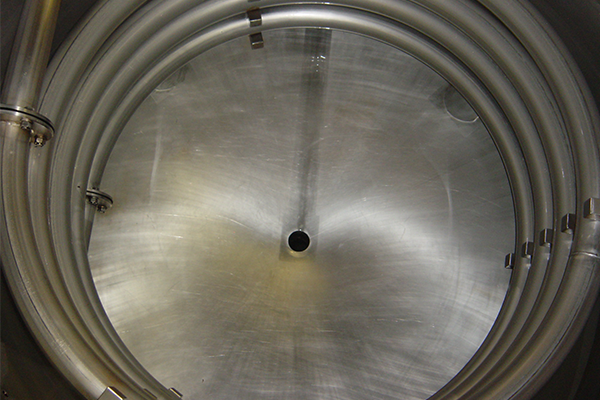

The small diameter tubes take up very little tank space, so tanks can be smaller on new plant and other heating systems are easy to replace on existing plant. Tubes can be shaped in multiple passes, or as helical coils for cylindrical tanks, to stay clear of fittings. Installing the heat exchanger needs only two flange drillings, usually in one tank wall.
Because the combustion air is induced, several burners can share one flue and exhaust fan while keeping individual control. Lanemark sizes each system with its TxCalc design software. Lanemark Combustion Engineering is based in Nuneaton, England, and specialises in gas burners for process air heating and tank heating.
Key advantages
- At least 80% efficient on gross CV (90% net)
- Small tubes take up minimal tank space
- Simple retrofit with two flange drillings
- Multiple burners on a common flue
- Runs on low gas supply pressures
- Natural gas or LPG (propane)
Lanemark TX specifications
- Heat input 15 to 1,150 kW across the range
- Efficiency ≥80% gross CV, ≥90% net CV
- Fuel Natural gas or LPG (propane)
- Control On/off, high/low/off, or modulating
- Control voltage 230 V or 110 V
- Fan supply 400 V 3-phase, 230 V single phase, or 460 V 3-phase 60 Hz
- Flame sensing Flame electrode or UV
Models and variants
| Model | Immersion tube size | Heat input (kW) |
|---|---|---|
| TX15 | 1½" (40 mm) | 15 to 45 |
| TX20 | 2" (50 mm) | 20 to 80 |
| TX25E | 2½" (65 mm) | 35 to 140 |
| TX30 | 3" (75 mm) | 55 to 220 |
| TX40 | 4" (100 mm) | 100 to 400 |
| TX60 | 6" (150 mm) | 190 to 730 |
| TX80 | 8" (200 mm) | 300 to 1,150 |
Tube length, diameter, and number of passes are sized for each tank with Lanemark's TxCalc software.
Lanemark TX datasheet
The current Lanemark TX datasheet from Lanemark.
TX 1 datasheet
Spare parts and service
Burner spare parts
Spare parts for the Lanemark TX, sourced through the manufacturer. Ask us for part numbers and lead times.
Shop burner sparesCommissioning and burner service
Our technicians handle commissioning and ongoing burner servicing, so your Lanemark TX keeps running at its best.
Book a burner serviceLanemark TX FAQs
How does a Lanemark TX tank heating burner work?
The burner sits outside the tank and fires into an immersed tube heat exchanger. An exhaust fan at the tube outlet draws combustion air through, spreading heat evenly through the liquid.
How efficient is the TX?
At least 80% based on the gross calorific value of the gas, and at least 90% on net.
What heat input does the TX cover?
15 to 1,150 kW across seven models, from the TX15 with a 40 mm tube to the TX80 with a 200 mm tube.
What is the TX used for?
Metal finishing and pre-treatment tanks, industrial parts, crate, and bottle washers, hot water tanks, brewery wort coppers, CIP tanks, and food blanchers.
Can several TX burners share one flue?
Yes. Combustion air is induced, so multiple burners can connect to a common flue and exhaust fan while keeping individual burner control.
Who supplies and services Lanemark TX burners in Australia?
Hurll Nu-Way, based in Glen Waverley, Victoria, supplies Lanemark TX burners and provides commissioning, burner servicing, and spare parts. Call 1300 556 380.
